BLine is an open-source path generation and tracking suite for FRC holonomic drivetrains (swerve, mecanum, etc.), built by students for students. It prioritizes simplicity, easy tuning, and excellent real-time performance, trading theoretical optimality for practical tunability and iteration speed.

BLine was created by FRC Team 2638 (Rebel Robotics).

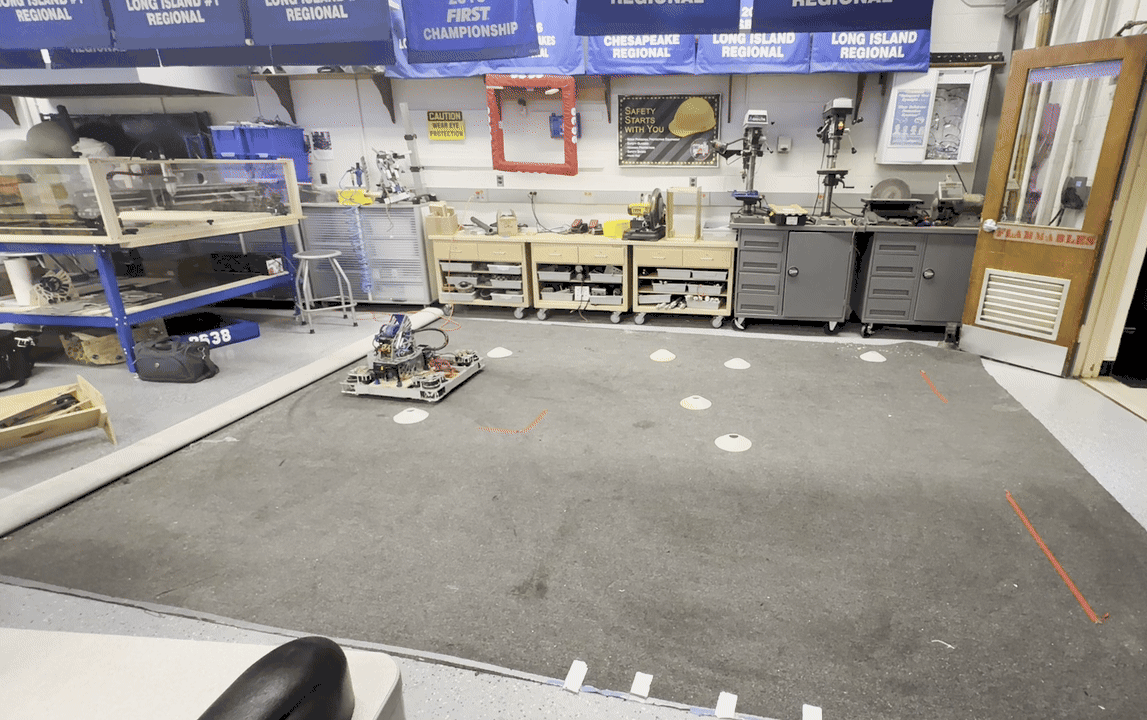

Robot Demo

The BLine Suite

BLine ships as two cooperating components:

Component Purpose Repository

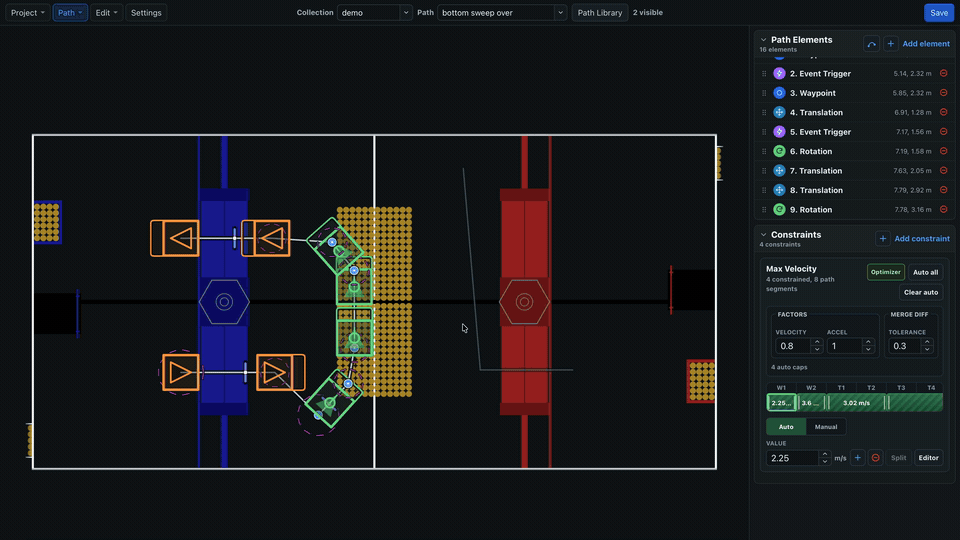

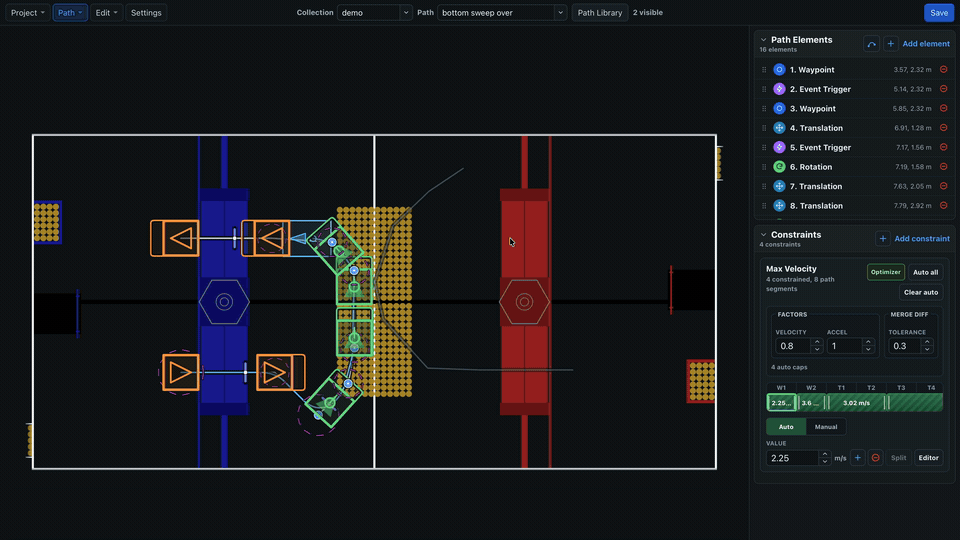

BLine-GUI Visual path editor with live simulation preview. Paths are saved as JSON. edanliahovetsky/BLine-GUI
BLine-Lib Java library for the robot. Loads paths (JSON or code), runs the path-following command. edanliahovetsky/BLine-Lib

You can use both together, use the library with hand-written JSON, or build paths entirely in code. All three are first-class workflows — see Quick Start.

Key Features

  • Polyline paths. Paths are sequences of connected straight-line segments instead of Bézier curves. Simple, visual, fast to edit.
  • Path elements. Three types — Waypoint (position + rotation), TranslationTarget (position only), RotationTarget (rotation only). Plus EventTrigger for firing actions mid-path.
  • Handoff radii + velocity limiting. Per-element handoff radii and ranged velocity/acceleration constraints control robot behavior through turns and intermediate elements.
  • Forgiving PID tuning. The translation controller minimizes remaining path distance, not time. Optimally and sub-optimally tuned controllers differ only near the end of the path — about 5 minutes of tuning usually gets you there.
  • Real-time path creation. No precomputation; paths are followed the instant they are constructed. Well-suited to on-the-fly teleop auto-align and dynamic autonomous.
  • Alliance flipping and mirroring. Built-in helpers for the opposite-alliance side (rotational symmetry) and for the field-width centerline (horizontal mirror).
  • Event triggers. Register a Runnable or WPILib Command against a key, then place EventTrigger elements in paths to fire at a specific t-ratio along a segment.
  • AdvantageKit-friendly logging. The follower pushes a rich set of keys (target indices, remaining distance, controller outputs, handoff state, event-trigger progress) through pluggable consumers.

Why Polylines?

A Bézier-based path follower must discretize the trajectory into timestamped setpoints and then chase the clock. Two things get hard:

  1. Tuning. You are tuning follow the clock, not reach the point. Under-tuned gains fall behind and never recover; over-tuned gains jitter.
  2. Robustness. If the robot is bumped or pushed off course, a time-parameterized follower keeps marching along its schedule. P2P-style followers work the position domain directly and tend to recover more gracefully.

BLine sets the translation controller's setpoint to the path endpoint (via remaining-distance error) and applies velocity/acceleration limits on the controller output. The robot hits max velocity irrespective of drivetrain tuning, and the only tuning that really matters is the deceleration near the end of the path.

For the full argument, see Design Philosophy.

Performance

Monte-Carlo simulation validation (WPILib physics sim, Theta* initial pathfinding, Artificial Bee Colony optimizer benchmarking against PathPlanner):

  • 97% reduction in path computation time
  • 66% reduction in cross-track error at waypoints
  • 2.6% increase in total path tracking time (negligible; measured with an idealized time-parameterized controller — likely flips sign in the real world where tuning is never ideal)

Read the Full White Paper →
