Path Elements

A BLine Path is an ordered sequence of path elements. Understanding the four element types — and the rules they follow together — is essential for designing reliable paths, whether you build them in the GUI or in code.

The four element types

Element Role Canvas appearance
Waypoint Position and holonomic rotation target Orange rectangle with rotation handle
TranslationTarget Position-only target (shapes the path) Blue circle
RotationTarget Rotation-only target interpolated along a segment Green dashed rectangle with rotation handle
EventTrigger Fires a registered action at a point along a segment Yellow line marker

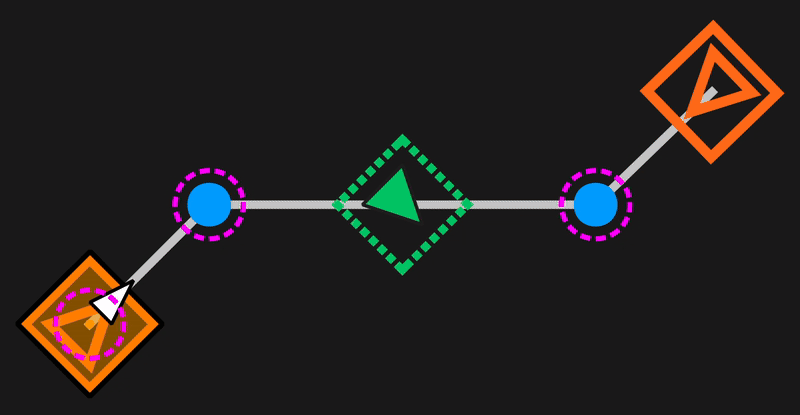

Element Types

Translation elements (Waypoints and TranslationTargets) form the backbone of the path. The robot drives through each in sequence along straight-line segments. Rotation elements (Waypoints and RotationTargets) define how the holonomic heading evolves. Event triggers fire a user-registered Runnable or Command when the robot's projection onto the path crosses a configured position along a segment.

Path endpoints

The first and last elements of a path must both be a Waypoint or a TranslationTarget. A path that begins or ends with a standalone RotationTarget or EventTrigger is invalid and will be refused. A single-element path consisting of only one Waypoint or TranslationTarget is valid — this is how you do a simple drive-to-pose.

Waypoints

A Waypoint carries both a translation target and a rotation target. Use one wherever the robot needs to be at a location and face a particular direction — scoring pockets, intake stations, final alignment poses.

// From Translation2d + Rotation2d
new Path.Waypoint(new Translation2d(1.0, 1.0), Rotation2d.fromDegrees(0));

// From Pose2d
new Path.Waypoint(new Pose2d(1.0, 1.0, Rotation2d.fromDegrees(0)));

// With a custom handoff radius (meters)
new Path.Waypoint(new Pose2d(1.0, 1.0, Rotation2d.fromDegrees(0)), 0.3);

// Non-profiled rotation (robot snaps to heading instead of interpolating)
new Path.Waypoint(pose, /*profiledRotation=*/ false);

JSON form:

{
    "type": "waypoint",
    "translation_target": {
        "x_meters": 1.0,
        "y_meters": 1.0,
        "intermediate_handoff_radius_meters": 0.2
    },
    "rotation_target": {
        "rotation_radians": 0.0,
        "profiled_rotation": true
    }
}

Translation targets

A TranslationTarget only commands position — it shapes the path the robot takes without pinning a specific holonomic heading there.

new Path.TranslationTarget(new Translation2d(2.0, 2.0));
new Path.TranslationTarget(2.0, 2.0);
new Path.TranslationTarget(2.0, 2.0, 0.3); // custom handoff radius

JSON form:

{
    "type": "translation",
    "x_meters": 2.5,
    "y_meters": 2.0,
    "intermediate_handoff_radius_meters": 0.2
}

When to reach for one: intermediate points that only exist to curve the path around an obstacle, keep the robot on a corridor, or break a long straight into pieces where you want per-section velocity limits.

Prefer TranslationTargets over Waypoints for path shaping

Every waypoint pins rotation, which costs rotation bandwidth. If you don't actually need the robot to face a specific way at an intermediate point, use a TranslationTarget — the rotation controller is then free to smoothly transition between the waypoints that do matter.

Rotation targets

A RotationTarget lives between two translation elements and specifies a heading the robot should reach partway along that segment. The t_ratio parameter (0.0–1.0) fixes where along the segment the target is evaluated.

// Rotate to 90° by the midpoint of the segment
new Path.RotationTarget(Rotation2d.fromDegrees(90), 0.5);

// Snap instantly instead of interpolating
new Path.RotationTarget(Rotation2d.fromDegrees(90), 0.5, /*profiledRotation=*/ false);

JSON form:

{
    "type": "rotation",
    "rotation_radians": 1.5708,
    "t_ratio": 0.5,
    "profiled_rotation": true
}

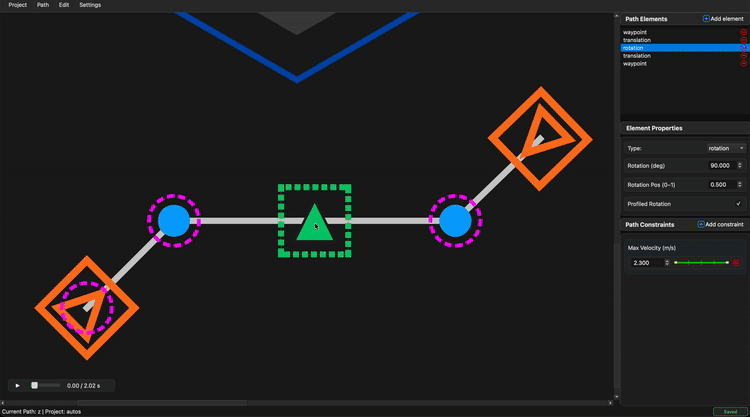

In the GUI, drag a RotationTarget along its segment to adjust its t_ratio visually.

Rotation Target t_ratio

Profiled vs non-profiled rotation

Rotation targets (and the rotation embedded in a Waypoint) carry a profiled_rotation flag:

Mode Behavior
profiled_rotation = true (default) The rotation setpoint interpolates between the previous rotation target and this one, following the robot's progress along the segment. Produces smooth sweep-style turns.
profiled_rotation = false The rotation setpoint snaps to this heading immediately. Use for sharp, intentional reorientations that shouldn't be spread across the segment.

In both cases the rotation PID still enforces the configured max rotational velocity and acceleration.

Event triggers

An EventTrigger is a zero-width element that fires a registered action when the robot's projection onto the current segment reaches the trigger's t_ratio. See Event Triggers for the full guide. Minimal example:

// Register once, at robot init
FollowPath.registerEventTrigger("shoot", () -> shooter.shoot());

// Place it in a path
new Path(
    new Path.Waypoint(new Translation2d(1, 1), Rotation2d.fromDegrees(0)),
    new Path.EventTrigger(0.5, "shoot"),
    new Path.Waypoint(new Translation2d(3, 1), Rotation2d.fromDegrees(0))
);

JSON form:

{
    "type": "event_trigger",
    "t_ratio": 0.5,
    "lib_key": "shoot"
}

The trigger fires once per run, based on the robot's projected position along the segment — it fires even if the robot is off the nominal path line.

Building complete paths

The four element types compose freely:

Path myPath = new Path(
    // Start at (1,1) facing 0°
    new Path.Waypoint(new Translation2d(1.0, 1.0), Rotation2d.fromDegrees(0)),

    // Fire the intake action halfway through the first segment
    new Path.EventTrigger(0.5, "deployIntake"),

    // Curve through (2,2)
    new Path.TranslationTarget(new Translation2d(2.0, 2.0)),

    // Spin to 90° at the midpoint of the next segment
    new Path.RotationTarget(Rotation2d.fromDegrees(90), 0.5),

    // End at (3,1) facing 180°
    new Path.Waypoint(new Translation2d(3.0, 1.0), Rotation2d.fromDegrees(180))
);

Ordinals and constraints

Each translation element gets a translation ordinal; each rotation element gets a rotation ordinal. Waypoints increment both. These ordinals are what ranged constraints refer to when you want per-section velocity/acceleration limits.

Single-element paths

A single Waypoint path is a valid, useful construct — it turns BLine into a clean drive-to-pose command:

Path alignToReef = new Path(
    new Path.Waypoint(reefScoringPose)
);
pathBuilder.build(alignToReef).schedule();

This is often the simplest way to do teleop auto-align: build the path on button press, schedule the command, and let BLine handle acceleration limiting, rotation, and tolerances.
