First Path Tutorial

This tutorial creates one short path in BLine Web, exports it into a robot project, and follows it with BLine-Lib. The first run is intentionally slow. Its job is to verify the complete editor-to-robot workflow before you tune for competition speed.

BLine Web and JSON are optional

This tutorial uses the editor because its field view and simulation make a first path easy to inspect. BLine-Lib can also construct complete custom paths directly in Java, including elements and constraints. That workflow does not require BLine Web or an exported path JSON file.

Use a Blue alliance Driver Station selection for this first run so the authored coordinates and physical placement match directly. Test automatic red-side transformation only after the blue-origin path works.

What you will build

A two-waypoint path named first-straight on the current FRC field:

start waypoint ─────────────── end waypoint
     0°                              0°

Expected files:

src/main/deploy/autos/
├── config.json
└── paths/
    └── first-straight.json

The tutorial uses these starting values:

Setting	Tutorial value	Why
Maximum translation velocity	0.5 m/s	Limits how fast the first test can move.
Maximum translation acceleration	12 m/s²	Lets the command respond promptly when the translation PID asks it to accelerate or decelerate.
Translation P	2.0	Starting gain for speed from remaining path distance.
Rotation P	1.0	Starting gain for angular speed from heading error.
Cross-track P	0.2	Starting gain for lateral correction toward the segment.

These are tutorial values, not a universal tune. A new BLine Web project currently starts at 4.5 m/s maximum translation velocity and 12 m/s² maximum translation acceleration. For this first path, lower the velocity and leave the acceleration at its product default.

Why low velocity and high acceleration are not contradictory

Maximum velocity limits the robot's speed. Maximum acceleration limits how quickly BLine's final velocity command may change, including when the PID asks the robot to slow near the endpoint. A low acceleration ceiling can delay that correction and change how the endpoint behaves. Use 0.5 m/s to make this first run slow without unnecessarily restricting the controller's response.

1. Create a project

Open BLine Web.

• Browser: choose Project → Workspace → New Project.
• Desktop: choose Project → Folder → Create Project Folder…, then select the robot repository or src/main/deploy/autos.

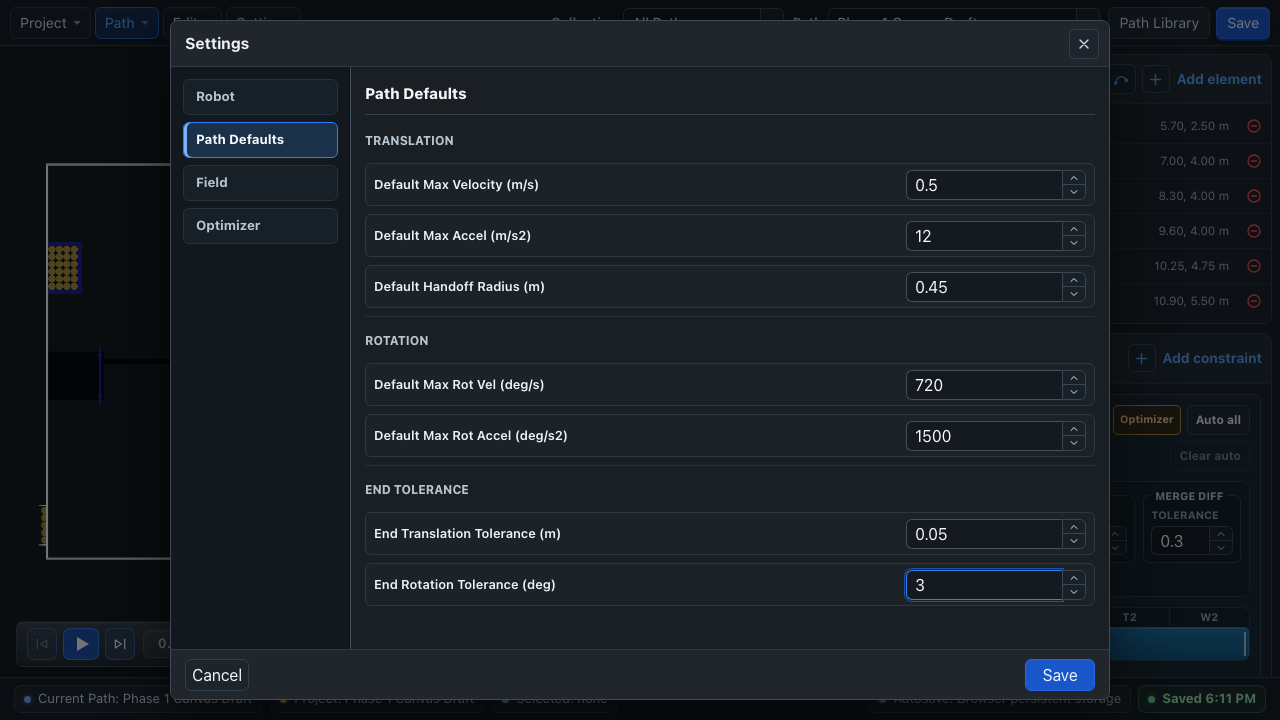

Open Settings:

1. Under Field, confirm the latest FRC field is selected. For the current docs, that is REBUILT 2026.
2. Under Robot, enter the bumper-to-bumper length and width.
3. Under Path Defaults → Translation, set Default Max Velocity (m/s) to 0.5.
4. Leave Default Max Accel (m/s2) at 12.
5. For this first test, use an end translation tolerance around 0.05 m and an end rotation tolerance around 3°.
6. Save the settings.

2. Create the path

Choose Path → Manage Paths → Create New Path, name it first-straight, and create it outside a collection for now.

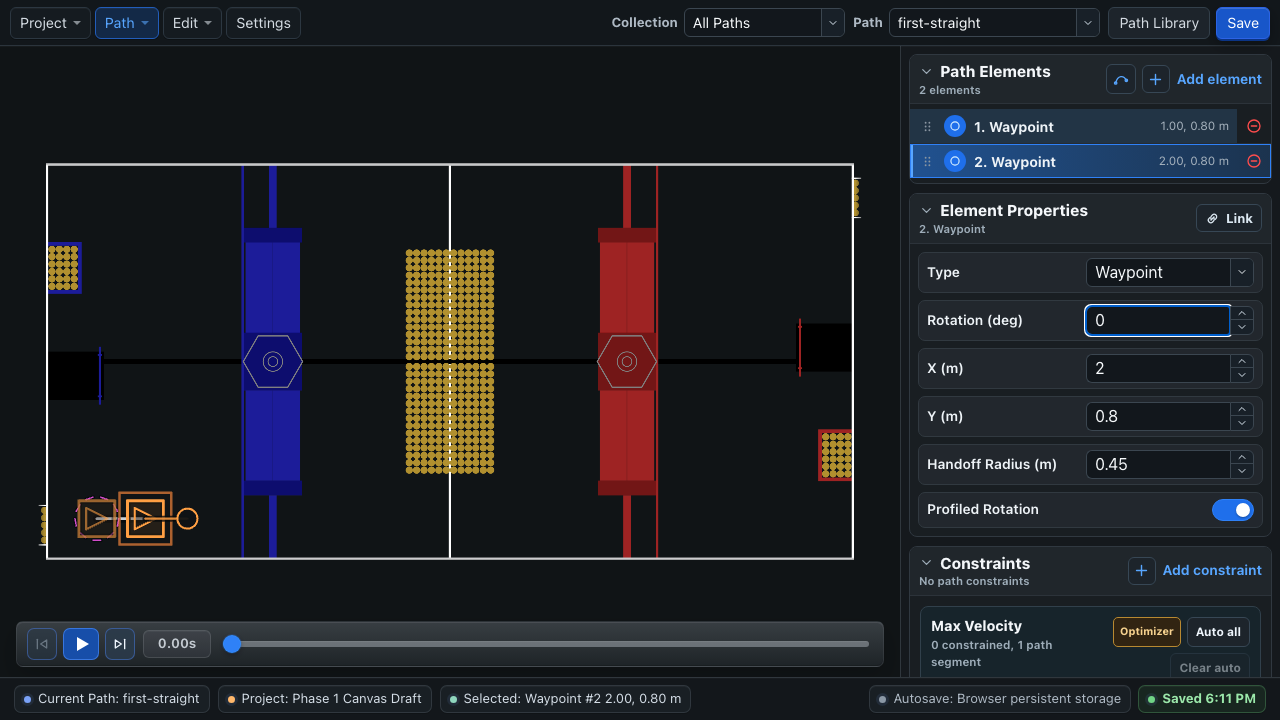

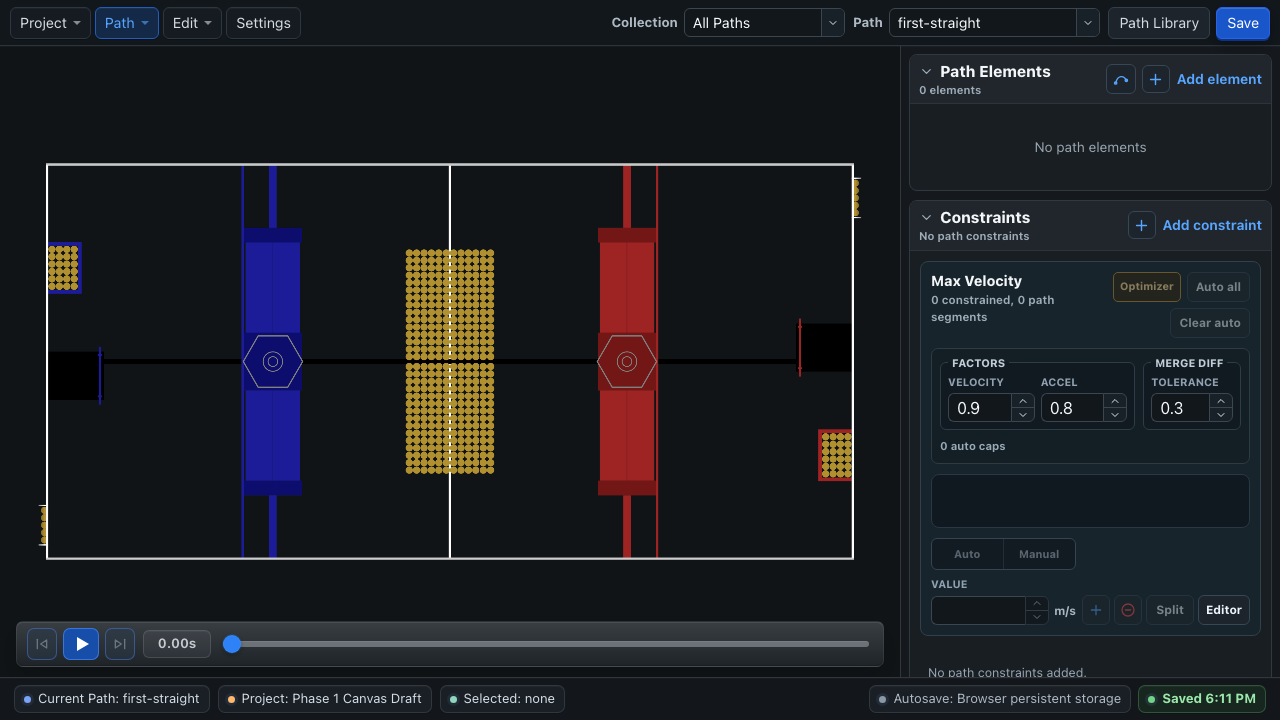

Add two Waypoint elements from the Path Elements panel:

Element	X	Y	Rotation
Start	1.0 m	0.8 m	0°
End	2.0 m	0.8 m	0°

You can type the values in Element Properties or drag the waypoint on the field.

This short lower blue-side corridor stays before the first large blue field structure on the bundled 2026 REBUILT field for an ordinary bumper footprint. Still confirm the route against your configured dimensions and the official field setup.

Why both elements are waypoints

A waypoint contains translation and rotation. The first one gives the path an unambiguous start pose; the final one gives the follower a final heading to satisfy before finishing.

3. Preview the structure

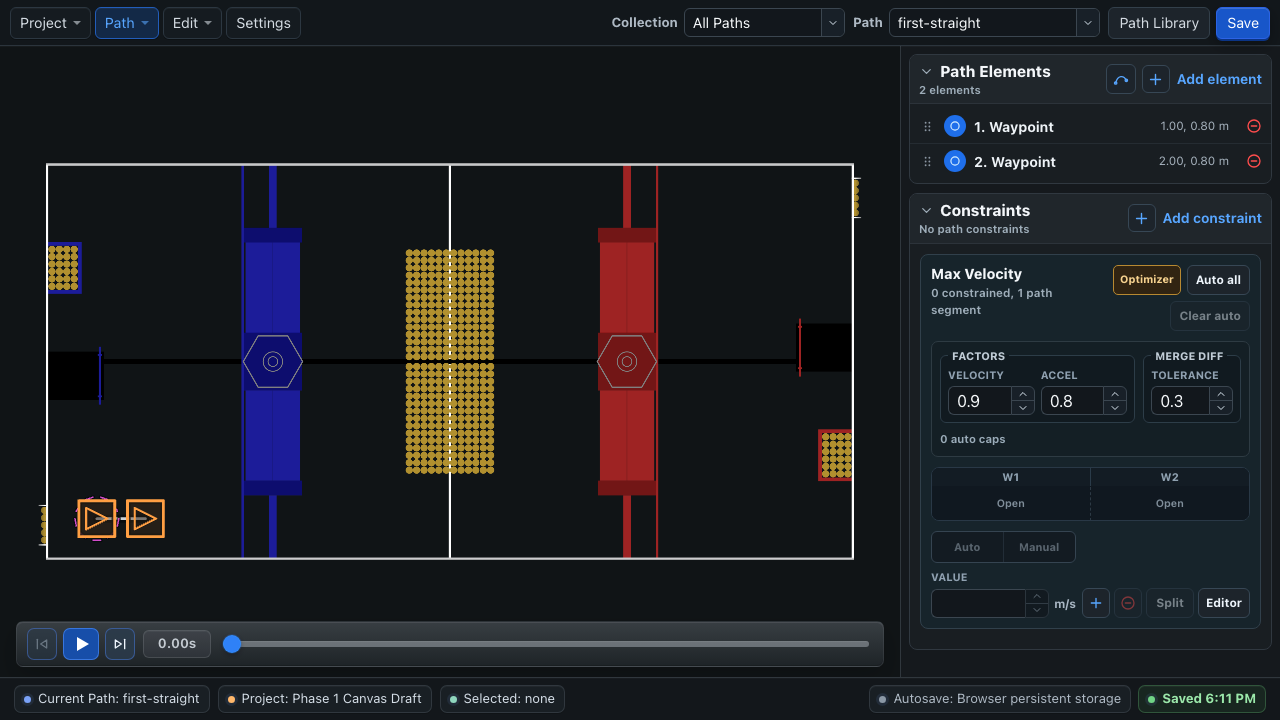

Press Play in the transport controls beneath the field. Confirm that:

• the footprint starts at the first waypoint;
• it travels along the line to the second waypoint;
• the heading stays at 0°; and
• the simulation reaches the end without reversing.

The editor preview is idealized kinematics, not drivetrain physics. It can catch element ordering and constraint mistakes, but it cannot validate wheel slip, controller gains, voltage limits, or localization. See Simulation.

4. Save and export

Wait for the lower-right status to show Saved.

BrowserDesktop

Choose Project → Import / Export → Export Autos Folder…. Extract the downloaded archive and copy its autos tree into src/main/deploy/.

If the project is already open from the robot repository or autos folder, saving writes the runtime files there directly.

Confirm that config.json and paths/first-straight.json exist in the robot project before deploying.

5. Wire the drivetrain

Create one reusable builder, usually in RobotContainer. The speed supplier and consumer must both use the robot-relative frame.

import edu.wpi.first.math.controller.PIDController;
import frc.robot.lib.BLine.FollowPath;

FollowPath.Builder pathBuilder = new FollowPath.Builder(
    driveSubsystem,
    driveSubsystem::getPose,
    driveSubsystem::getRobotRelativeSpeeds,
    driveSubsystem::driveRobotRelative,
    new PIDController(2.0, 0.0, 0.0),
    new PIDController(1.0, 0.0, 0.0),
    new PIDController(0.2, 0.0, 0.0)
).withDefaultShouldFlip()
 .withTRatioBasedTranslationHandoffs(true);

The controller order is translation, rotation, then cross-track. These gains are a practical first-run baseline; they are not a substitute for the tuning procedure on the next page. T-ratio handoffs do not change this two-anchor path, but enabling them now gives future intermediate pass-through anchors the recommended progress-based handoff behavior.

Do not pass field-relative speeds

BLine converts its field-relative command into robot-relative ChassisSpeeds before calling the consumer. Driver-perspective or alliance-dependent joystick transforms also belong outside this consumer.

6. Load the path and reset once

Fixed paths can be loaded when RobotContainer is created:

import edu.wpi.first.wpilibj2.command.Command;
import frc.robot.lib.BLine.Path;

Path firstStraight = new Path("first-straight");

Command firstAuto = pathBuilder
    .withPoseReset(driveSubsystem::resetPose)
    .build(firstStraight);

// Builder options persist. Clear this before building any later path command.
pathBuilder.withPoseReset(ignored -> {});

FollowPath applies the selected alliance flip and mirror to its private path copy, then passes that transformed start pose to the reset consumer. Reset once at the beginning of the autonomous routine, not before every path in a multi-path sequence.

withPoseReset(...) is a persistent builder option

Every command built while this option is set captures the reset consumer. Clear it immediately after building the first command or later paths can teleport odometry to their own starts. Do not replace this with resetPose(firstStraight.getStartPose()) when automatic flip/mirror is enabled; that untransformed pose is on the authored side of the field.

Return firstAuto from the robot's autonomous selection code.

7. Pre-orient a swerve drivetrain

For this first path, point all swerve modules along the first direction of travel before enabling. Otherwise the robot spends the beginning of the path steering its modules and may make a small unwanted movement before it can drive forward. Pre-orientation is useful for most paths and becomes especially important as the start gets more aggressive, although a gentle, tested path may not need a separate orientation step.

BLine can calculate the initial direction for the loaded path:

var initialModuleDirection = firstStraight.getInitialModuleDirection();

Feed that direction into your drivetrain's own module-orientation command before the path begins, or align the modules manually during robot setup. The exact command is drivetrain-specific. For this Blue-alliance tutorial path, the modules should point straight along the positive field X direction.

8. Run safely

1. Select Blue alliance and put the robot at the authored start pose.
2. Confirm the robot's reported pose matches its physical position and heading.
3. Confirm the swerve modules are pre-oriented.
4. Clear the test area and announce before enabling.
5. Run once at 0.5 m/s maximum velocity.
6. Disable immediately if the robot moves in an unexpected direction.

Expected result

The robot should move slowly along the straight line, decelerate near the endpoint, enter both tolerances, and receive zero chassis speeds when the command ends.

If it does not:

Symptom	Check first
Drives in the wrong direction	Robot-relative speed frame and joystick/alliance transforms
Jumps to an unexpected pose	Pose reset and field coordinate origin
Turns when it should stay at 0°	Gyro sign, robot heading, and rotation controller order
Stops short or repeatedly crosses the endpoint	Translation gain, tolerance, measured pose, and the final velocity command
Never finishes	remainingPathDistanceMeters, rotationErrorDeg, and final tolerances
Editor preview works but robot does not	Localization, module control, and real drivetrain response

Continue with Tune Your Robot before building a competition path.

Optional: publish a dashboard preview

The first path is simple enough to test without publishing it to a dashboard. After the robot follows it successfully, you can use WPILib Field2d to inspect loaded paths in Elastic or Glass:

BLineField.drawPath(field, "FirstStraight", firstStraight);

The object appears as FirstStraightTrajectory in a Field2d-compatible dashboard. This is a useful visualization and debugging tool, but it is not required for following the path. See Optional Field2d Visualization for setup, Elastic examples, and transformed-path considerations.
